Name: Hot Sale 220A Welding Current Generator Diesel Welding Machine For Hotels
Brand: Hot Sale 220A Welding Current Generator Diesel Welding Machine For Hotels
SKU: diesel welding machine, HR192FD
Price: 800.00 USD
Availability: InStock
Rating: 4.5 (125 reviews)

Características Galeria Descrição de produto Peça umas citações

Características

Especificações

Condition: New

Type: TIG Welders

Video outgoing-inspection: Not Available

Machinery Test Report: Not Available

Marketing Type: Hot Product 2019

Warranty of core components: 1 Year

Core Components: Engine, Motor

Arc Current: 220A

Pulse Frequency: 50HZ

Pilot Arc Current: 220A

Rated Duty Cycle: 100

Motor Type: AC Motor

Dimensions: 950x560x760

Usage: welding and generator

Voltage: 220/230V

Power: 2.2KW

Weight (KG): 145 KG

Warranty: 1 year

Key Selling Points: PORTABLE

Applicable Industries: Hotels, Building Material Shops, Construction worksÂ

Showroom Location: None

After-sales Service Provided: Engineers available to service machinery overseas

Function: main welding

Model: diesel welding machine

Welding rod: 3.2 and 4.0 mm

welding current: Max. 220A

Generator function: 2KW for lighting

Engine model: HR192FD

Engine power: 14HP

Color: optional

Informação básica

Model Number: diesel welding machine, HR192FD

Condições de Pagamento e Envio

Packaging Details: Carton packing with plywood

Supply Ability: 120 Piece/Pieces per Day

Descrição de produto

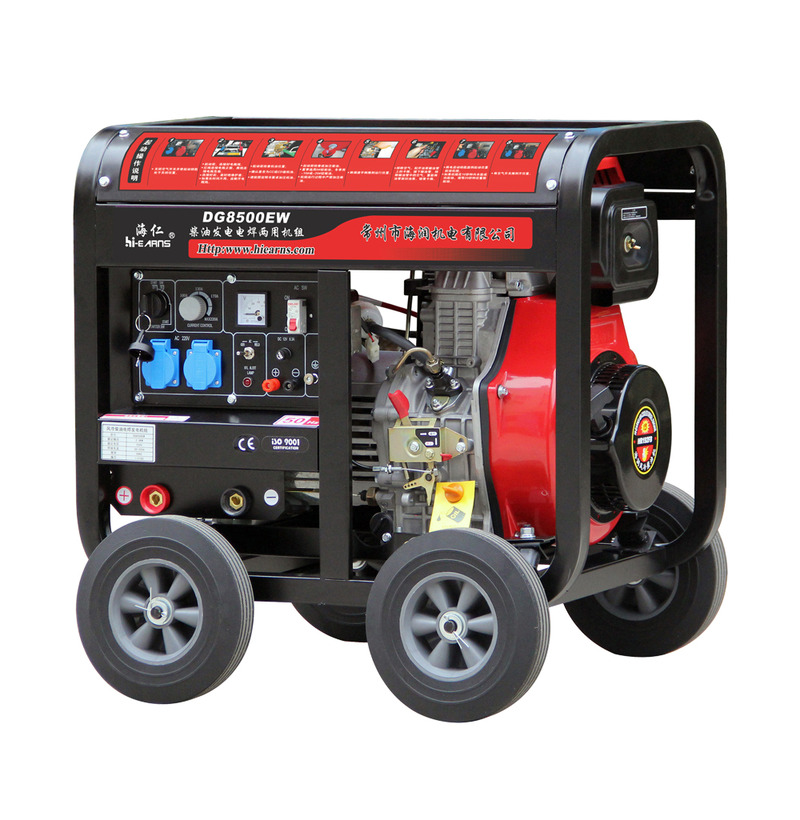

220A welding current diesel welding generator machine

DG8000EW model: With 14HP HR192FD air-cooled diesel engine and 100% copper wire welding alternator ensure a 220A welding current and 2KW generator output.

Can use 3.2/4.0 mm welding rod.welding machine

Related Products

GENERATOR	Model	DG8000EW
	Frequency(HZ)	50	60
	Rated.AC voltage(V)	220	220
	Rated current(A)	8.3	8.3
	Rated output(KVA)	2.0	2.0
	Rated speed(rpm)	3000	3600
WELDER	Welding no-load voltage(V)	55-65
	Working voltage(V)	26-30
	Rated current (A)	220
	Range of current(A)	0-220
	Welding efficiency	60%
	Power factor (cosΦ )	1
	Phase	1
	Noise level(at 7m)	78-83db
ENGINE	Engine model	HR192FD
	Engine type	Single-cylinder, vertical, 4-stroke air-cooled diesel engine
	Bore× stroke(mm)	92×75
	Displacement capacity(cc)	498cc
	Fuel	0# or -10# light diesel fuel
	Lubrication oil volume(L)	1.65
	Combustion system	Direct lnjection
STANDARD FEATURES	Voltmeter	yes
	AC Output Socket	2
	AC circuit breaker	yes
	Oil warning light	yes
	Oil alert	yes
OPTIONAL FEATURES	DC circuit breaker	optional
	Calculagraph	optional
	Big Wheel	No
	Three phase voltage	optional
DIMENSIONS	Dimension(L× W× H)(mm)	700× 470×600
	Net weight(kg)	135
	20FT	102

Michael Yin

Sales manager

♦ Mobile/Wechat/Skype: +86-15861889798

♦ E-mail: hiearns9@ vip.163.com

♦ TradeManager: cn200034502

♦ QQ: 529206941
