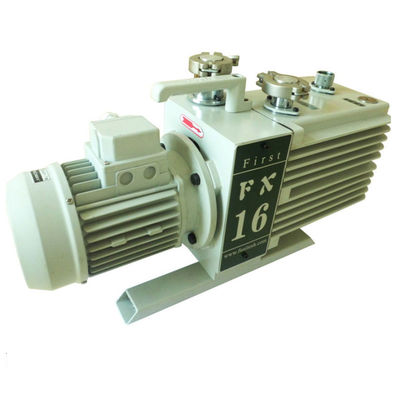

Lab And Two Stage HVAC 9cfm Vacuum Pump With CE ISO9001 Certificate

1 Piece
MOQ
$1,600.00(1 - 4 Pieces) $1,400.00(5 - 9 Pieces) $1,100.00(>=10 Pieces)
preço
Lab And Two Stage HVAC 9cfm Vacuum Pump With CE ISO9001 Certificate
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Model Number: FX16
Structure: double stage rotary vane vacuum pums
Type: Dual-stage oil sealed vacuum pump
Pump speed in 60Hz: 19m3/hr , 11CFM
Pump speed in 50Hz: 16m3/hr, 9CFM
Ultimate vacuum pressure: 0.3microns, 4X10^-4mbar
Power supply: 220V/50Hz/1Phase, 220V-460V/50Hz or 60Hz/3Phase
Power: 0.55Kw
Weight: 35KGS
Application: laboratory and HVAC
Informação básica
Model Number: FX16
Condições de Pagamento e Envio
Packaging Details: Plywood case
Descrição de produto
Product Description

Dual-stage Oil sealed Vacuum Pump

with ultimate vacuum down to 0.3 microns.

The N features industrial grade design to stay fast, robust and durable.
Two-shift adjustable gas ballast valve
Allows for the different requirements of condensable gas to be exhausted.
Dual automatic anti-suckback design
Protects vacuum system from oil contamination in the event of an unexpected shut down.
Forced oil circulation system
Ensures stables running of the pump.
Integrated cylinder structure and pin connection
No sealings parts leads to longer service time and easy maintenance.


Our Advantage:

24 years Production experience in Two -Stage Oil Rotary Vane Vacuum Pump.
Instant after-service.
Vacuum pump long service time (10-15 years )  .
Each pump will be under test for 10 hrs before shipment to keep the high quality.

Specifications
Model
FX8/ FXD8
FX16/FXD16
FX32
FX60
Pump speed (50Hz)
8m3/hr, 5CFM
16m3/hr, 9CFM
32m3/hr, 20CFM
60m3/hr, 37CFM
Pump speed (60Hz)
9.6m3/hr, 6CFM
19.2m3/hr, 11CFM
38.4m3/hr, 24CFM
72m3/hr, 44CFM
Ultimate partial vacuum pressure
4x10^-2Pa
4X10^-4mbar
0.3Microns
4x10^-2Pa
4X10^-4mbar
0.3Microns
4x10^-2Pa
4X10^-4mbar
0.3Microns
4x10^-2Pa
4X10^-4mbar
0.3Microns
Noise Lw: dB(A)
62 dB(A)
65dB(A)
69dB(A)
70dB(A)
Inlet
KF25 Flange
KF25 Flange
KF40 Flange
KF40 Flange
Outlet
KF25 Flange
KF25 Flange
KF25 Flange
KF25 Flange
Oil consumption
1.1Liter
1.5Liter
2.8Liter
4.0Liter
Recommended oil type
HFV-M200
HFV-M200
HFV-M200
HFV-M200
Motor power
0.37Kw
0.55Kw
1.1Kw
2.2Kw
Power supply
120V/60Hz/1P/AC
220V/50Hz/1P/AC
220V-460V/50Hz or 60Hz /3p/AC
220V-460V/50Hz or 60Hz/3P/AC
480V/60Hz/3P/AC
N.W.:/G.W.:
27KGS/29KGS
29KGS/35KGS
61KGS/65KGS
65KGS/70KGS
Dimension
510x170x260mm
550X170X260mm
630X240X410mm
690X240X410mm
Pump service time
10-15years
10-15years
10-15years
10-15years
Applications

<<<Short Path Distillation application>>>


FX8/FXD8Vacuum Pump-6CFM

Pump speed: 6CFM
Max vacuum: 0.3microns
Power supply: 120V/60Hz/1Phase
Pump service time: 10-15 years.


<<<Short Path Distillation application>>>
FX16/FXD16Vacuum Pump-11CFM

Pump speed: 11CFM
Max vacuum: 0.3microns
Power supply: 120V/60Hz/1Phase
Pump service time: 10-15 years.

 < << Laboratory / Vacuum Oven/ Freeze Dryer >>>



                           FX8/FXD8 Vacuum Pump-6CFM


                                                            Pump speed: 6CFM
                                                    Max vacuum: 0.3microns
                                           Power supply: 120V/60Hz/60Hz
                                             Pump service time: 10-15 years.



<<<Refrigerator/ Air conditioning/ Water-dispenser

Production Application>>>


FX8/FXD8/FX16/FXD16/FX32

5CFM/11CFM/24CFM


                           <<<Refrigerator production line>>>

                                                 FX8/FXD8/FX16/FXD16/FX32

                                                                 5CFM/11CFM/24CFM
Certifications
Company information

Company Introduction:

SHANGHAI FIRST VACUUM PUMP CO.,LTD is founded in 1997 and specialize in Produce Vacuum Pump for 23 years. ISO and CE approved. Annual output reaches 10000 sets.

Main Products: Double-Stage Oil Rotary Vane Vacuum Pump, Single-Stage Oil Rotary Vane Vacuum Pump and accessories like (Vacuum Bellows, Hose adapter, KF Clamps etc).

Front Side View

Back Side View

Side view

Products Picture
Packing & Delivery
Lead time around 3-5 working days.
FX8/FXD8
Plywood case
Packing size: 63X50X35cm
N.W./G.W.:  30KGS/35KGS
FX16/FXD16
Plywood case
Packing size: 63X50X35cm
N.W./G.W.: 35KGS/40KGS
FX32
Plywood case
Packing size: 73X50X35cm
N.W./G.W.: 65KGS/70KGS
FX60
Plywood case
Packing size: 83X50X35cm
N.W./G.W.: 70KGS/75KGS
