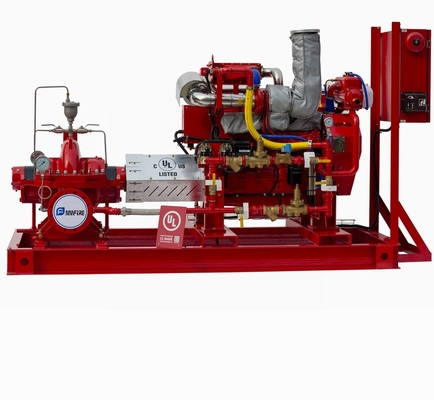

Fire Fighting Good Price of Vertical and Horizontal Fire Fighting Pump with UL and FM Listed

Pump:

Model: SCF300-250-490
（12x10") (UL listed )


Q= 3500usgpm ; N=1800rpm(60HZ)

Material:

Casing---Ductile Cast iron

Impeller---SS304

Shaft--- AISI 4340

Shaft sleeve---SS304

Seal------ Gland packing

Wear ring----Bronze

Bearing---SKF

Engine: NM FIRE(UL)/

DE MAAS (FM )

Control Panel:

Tornatech (UL/FM)

Model: GPD-24-220

Standards:NFPA20, UL, FM, EN12845,GB6245

Performance Ranges:

UL : Q: 500-4000GPM H:100-190PSI

FM: Q: 500-4000GPM H:100-190PSI

CCCF: Q:20-500L/S H:0.42-2.0Mpa

NFPA20: Q: 300-8000GPM H:60-300PSI

Applications

Large hotels, hospitals , schools，office buildings，supermarkets, commercial residential buildings, metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants, thermal power plants, terminals, oil depots, large warehouses and industrial and mining enterprises,sea water pumping etc.

Special material for sea water pumping is available: Casing , impeller ,shaft ,shaft sleeve, wear ring—SS2205, Seal—Gland packing, Bearing—SKF

Product types

Diesel engine driven fire pump group with air cooling & water cooling

NFPA20 Package
